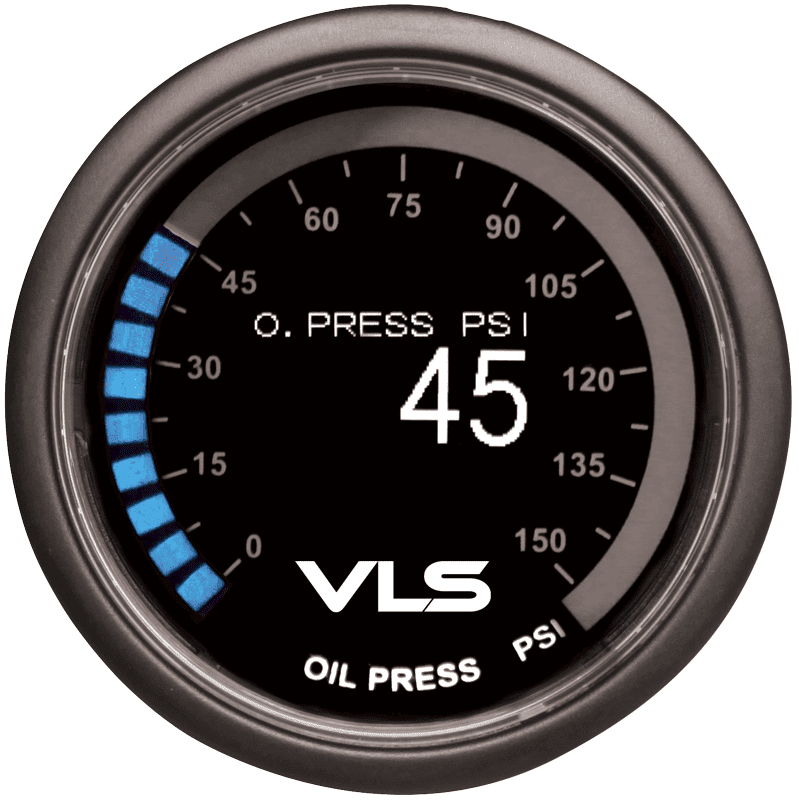

VLS Oil Pressure OLED Gauge

Part #: 1TR1AA004R

1TR1AA004R

MSRP: $218.00

  • 52mm diameter gauge (2 1/16 in.)
  • 0 PSI to 150 PSI reading
  • Digital OLED display
  • 30 LED outer ring
  • Daisy chain compatible
  • Oil pressure sensor included
    (1/8 NPT thread pitch)
  • Mounting kit included

The Revel VLS Oil Pressure gauge monitors the oil pressure from 0 PSI up to 150 PSI. The OLED screen allows for easy readings from any viewing angle, and a 30 LED outer ring for viewing at a quick glance. This kit is included with the oil pressure sensor in 1/8 NPT thread pitch for easy installation.

The Revel VLS Oil Pressure gauge is daisy-chain compatible with the VLS Boost gauge, VLS Water Temperature gauge, VLS Oil Temperature gauge, and VLS Voltage gauge.


oled display

OLED Screen

Maximum comfort is attained by the use of an OLED (Organic Light Emitting Diode) numerical display. When compared to a traditional LCD display, the OLED display provides sharper contrast resulting in a deeper black for a crisp, clear images that is easier to read at a glance. The technology also allows for undistorted viewing angles approaching 170 degrees. The OLED display also does not require a backlight to be clearly visible at night, which gives the slim profile of the gauge — perfect for mounting in areas where space is an issue.

daisy chain

Daisy Chain Compatible

Revel VLS gauges have been designed to connect in sequence, minimizing wiring to keep your install clean. Once the first gauge is connected, adding another is as easy as plugging in the provided harness to the original gauge and routing it to the additional gauge – no need to connect each gauge individually to power.

*VLS gauges are daisy chain compatible only with VLS OLED gauges.

*Note: VLS Wideband A/F gauge and VLS Intercooler Dual Temp gauge are not daisy-chain compatible units.

1TR1AA004R contents

Parts Included

All Revel VLS gauges include the necessary hardware, sensors, and universal mounting pod and hood, as well as the installation instructions:

  • (1) Oil Pressure Gauge 52mm (2 1/16 in.)
  • (1) Power Harness
  • (1) Oil pressure sensor and wiring harness
  • (1) Mounting Pod
  • (1) Sun Shade (hood)
  • (1) 3M double sided tape
  • (2) Mounting Bracket Threaded Extension
  • (2) Washers
  • (2) Nuts
  • (1) Mounting Bracket
